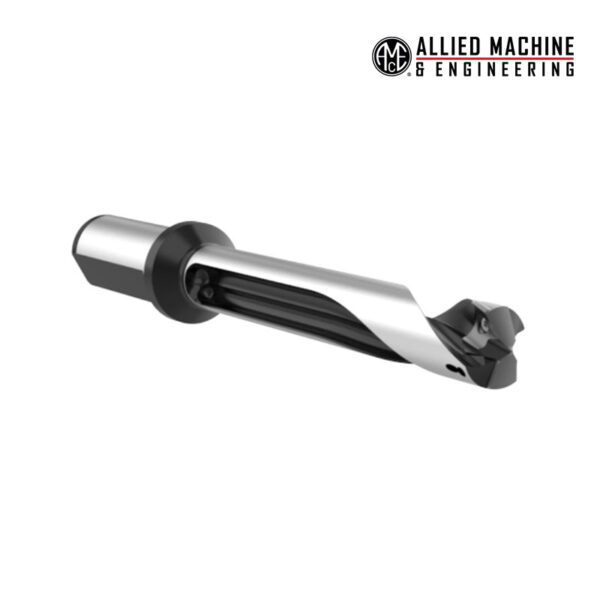

Structural Steel GEN3SYS® XT Pro

The GEN3SYS XT Pro Structural Steel insert is the optimal solution for beam and plate hole making in the structural steel industry. Allied’s XT Pro product line continues to excel in high penetration drilling and provides you with an optimal solution to your toughest demands. The upgraded carbide insert has been completely redesigned to improve your throughput and cut operational costs by extending life and increasing penetration rates. The XT Pro structural insert is designed to run most effectively in our GEN3SYS XT structural steel holder.

Advantages

  • Specifically designed for the Structural Steel Industry
  • Superior chip formation, life, and toughness required for harsh drilling applications

Product description

The GEN3SYS XT Pro Structural Steel insert is the optimal solution for beam and plate holemaking in the structural steel industry. Allied’s XT Pro product line continues to excel in high penetration drilling and provides you with an optimal solution to your toughest demands. The upgraded carbide insert has been completely redesigned to improve your throughput and cut operational costs by extending the life and increasing penetration rates. The XT Pro structural insert is designed to run most effectively in our GEN3SYS XT structural steel holder.

Features

  • Optimal tool life using our AM420 insert coating
  • Inserts are stocked in common structural steel hole sizes
  • Available in 3xD, 5xD, and 7xD lengths

Product Specifications

  • Product Type – Replaceable Insert Drill
  • Diameter Range – 0.4724″ – 1.3780″ (12.00mm – 35.00mm)
  • Coating – AM420
  • Insert Material – C2 (K20) carbide
  • Holder – Standard and Oversized
  • Flute Options – Straight
  • Shank Options – Flange (with flat)
  • Drill Depth – 3xD, 5xD, 7xD
  • Coolant – Through Coolant
