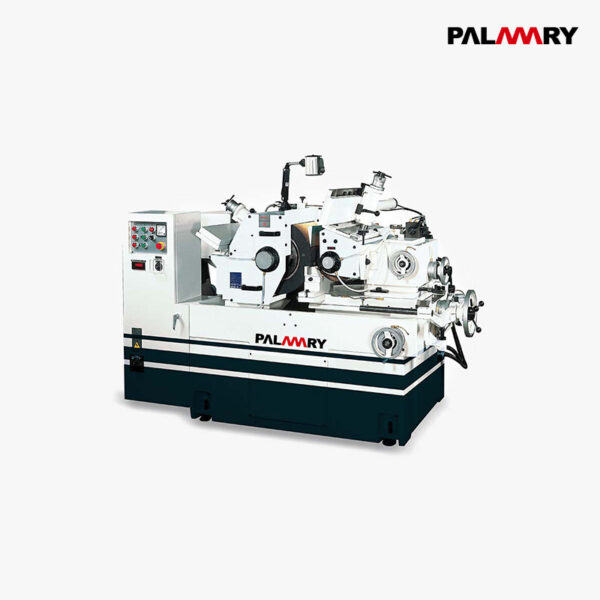

PC-1810S

FEATURES

  • Precision spindles: The GW spindle and the RW spindle are precision machined and made from alloy steel, processed with normalization, aging, and heat treatment, then proceed to sub-zero treatment, finally finished after precision machining and grinding.
  • Feed screw: The feed screw is manufactured from alloy steel. It’s also normailzed, high frequency harden and precision ground in order to have high feeding accuracy and excellent wear resistance.
  • Pressure switch: When starting the GW and RW spindle, this pressure switch allows starting only when oil enters into bearings thereby providing safety protection for the spindle bearings.
  • Lubrication system: The automatic lubricator provides lubrication to the GW spindle. Also all slideways are lubricated by a centerlized lubrication system, ensuring proper lubrication and feeding accuracy.

Product description

Specifications:

PC-1810S

Grinding wheel
Standard grinding range (dia.) Ø1~80 mm
Capacity increases with special arrangement Ø40~150 mm
Grinding wheel size (O.D. x width x I.D.) Ø455 x 255 x Ø228.6 mm
Grinding wheel speed 1260 r.p.m.
Grinding wheel motor 15 HP x 4P
Regulating wheel
Regulating wheel size (O.D. x width x I.D.) Ø255 x 255 x Ø111.2 mm
Regulating wheel speed 10~300 r.p.m. (variable)
Regulating wheel motor 2.0 kW servo motor
Regulating wheel tilt angle +5° ~ -3°
Regulating wheel swivel angle ±5°
Handwheel graduation
Upper slide feed graduation 3.5 mm/rev. ; 0.05 mm/graduation
Upper slide micro-feed graduation 0.1 mm/rev. ; 0.001 mm/graduation
Lower slide feed graduation 9 mm/rev. ; 0.05 mm/graduation
Lower slide micro-feed graduation 0.2 mm/rev. ; 0.001 mm/graduation
Trimming device graduation 2 mm/rev. ; 0.01 mm/graduation
Motor
Hydraulic pump motor 1 HP x 4P
Coolant motor 1/4 HP x 2P
Machine dimensions
L x W x H 2200 x 1840 x 1530 mm
New weight 3000 kg
The mentioned specifications & dimensions are subject to change without notice.
