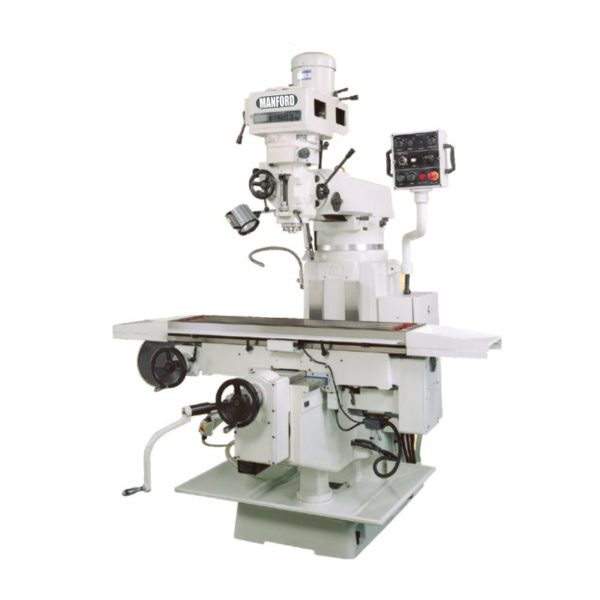

Manford 6KS-SP

Features:

  • Licensed Mehanite casting GC275 with annealing & Stress relieving treatment
  • 150-9002 quality approved, 100% accuracy and quality inspection
  • 1 Overload clutch of one-piece design, quill pinion shaft is spline designed to support to the overload clutch
  • 3 Double nut designed on the leadscrew nuts, a material made from PBC2 phosphor bronze provides anti-wearing and less backlash

Specifications:

  • X-axis table feed by servo motor
  • 5HP, 10 Speeds step head, NST #40
  • Fix screws on the rear of the head

Product description

Features:

  • Licensed Mehanite casting GC275 with annealing & Stress relieving treatment
  • 150-9002 quality approved, 100% accuracy and quality inspection
  • 1 Overload clutch of one-piece design, quill pinion shaft is spline designed to support to the overload clutch
  • 3 Double nut designed on the leadscrew nuts, a material made from PBC2 phosphor bronze provides anti-wearing and less backlash
  • Special tool for screw nuts adjustment, it is totally face-contacted & evenly pressured to the nuts, the backlash of leadscrew is well done and will not cause loosely
  • Thrust bearing location provided for all lead screws eliminating and movement
  • Hardened & ground on XY ways and table (except 5k/6k]
  • 1 Hardened & ground on XY, column slideways and column slideway (5k/6k)
  • 1 Grinding on slideway of column
  • Hardened & ground on spindle gear, back gears, and gear clutch
  • Precision honed on quill housing of milling head Chrome-plated & precision ground on the quill
  • 3 3 power quill feeds with automatic stop

Specifications:

  • X-axis table feed by servo motor
  • 5HP, 10 Speeds step head, NST #40
  • Fix screws on the rear of the head
  • More Stability on the connection of head & Ram.
  • Lifting motor on knee up-down
