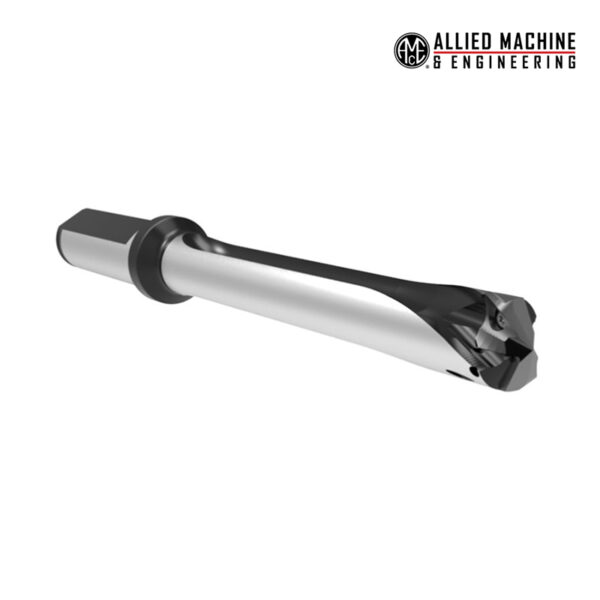

GEN3SYS® XT Pro

The material-specific XT Pro insert combines a substrate coating and geometry specifically designed to achieve optimal results in different ISO material classes. With quick connectivity to existing GEN3SYS drill insert holders, the XT Pro insert can be interchanged with previous XT inserts with ease, resulting in minimal set-up times so you can immediately increase your productivity.

Features
  • AM400 series coatings (AM420 and AM440)
  • Holder design includes dual gun drills
  • The holder features additional coolant outlets
  • Holder has increased flute area
  • 3xD, 5xD, 7xD, and 10xD lengths

Product description

GEN3SYS XT Pro

The material-specific XT Pro insert combines a substrate coating and geometry specifically designed to achieve optimal results in different ISO material classes. With quick connectivity to existing GEN3SYS drill insert holders, the XT Pro insert can be interchanged with previous XT inserts with ease, resulting in minimal set-up times so you can immediately increase your productivity.

Features
  • AM400 series coatings (AM420 and AM440)
  • Holder design includes dual gun drills
  • The holder features additional coolant outlets
  • Holder has increased flute area
  • 3xD, 5xD, 7xD, and 10xD lengths

Product Specifications

  • Product Type – Replaceable Drill Insert
  • Diameter Range – 0.4311″ – 1.3780″ (11.00mm – 35.00mm)
  • ISO Material – Steel, Cast Iron, Non-ferrous
  • Coating – AM420®, AM440®, TiN
  • Holder – GEN3SYS® Standard, GEN3SYS® XT Pro
  • Flute Options- Straight
  • Shank Options – Flange and Cylindrical/flat and no flat
  • Drill Depth – 3xD 5xD 7xD 10xD
  • Coolant – Enhanced Coolant Through
