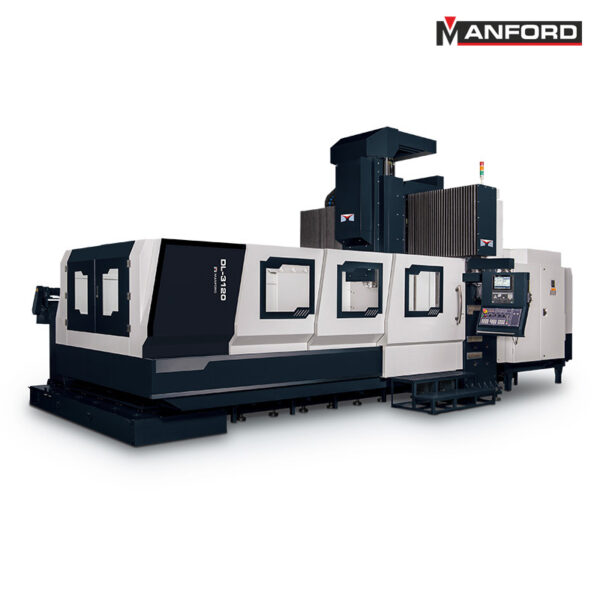

DL-3120(Y axis 2000)

SPECIFICATION

X TRAVEL 3,100 mm
Y TRAVEL 2,020 mm
Z TRAVEL 800 mm
SPINDLE NOSE TO TABLE SURFACE 150 ~ 950 mm
DISTANCE BETWEEN COLUMNS 2,100 mm
TABLE SIZE 3,000 x 1,800 mm
T-SLOT (Q’TY X SIZE X DIST) 11 x 22 x 150 mm
MAX. TABLE LOAD 10,000 kgs

Product description

SPECIFICATION

X TRAVEL 3,100 mm
Y TRAVEL 2,020 mm
Z TRAVEL 800 mm
SPINDLE NOSE TO TABLE SURFACE 150 ~ 950 mm
DISTANCE BETWEEN COLUMNS 2,100 mm
TABLE SIZE 3,000 x 1,800 mm
T-SLOT (Q’TY X SIZE X DIST) 11 x 22 x 150 mm
MAX. TABLE LOAD 10,000 kgs
SPINDLE
SPINDLE TRANSMISSION Two-step Gear transmission
SPINDLE TAPER BT50
SPINDLE SPEED 6,000 rpm ( 2 steps gear box )
SPINDLE POWER 15 / 18.5 kW
OTHER ITEMS
ATC CAPACITY 32 tools
SLIDEWAYS FOR 3 AXIS X / Y: Roller type linear guideway / Z: Box ways
