Product description
Circular-saw
A circular saw is a tool for cutting many materials such as wood, masonry, plastic, or metal and may be hand-held or mounted to a machine. In woodworking the term “circular saw” refers specifically to the hand-held type and the table saw and chop saw are other common forms of circular saws.
It is very popular among DIY enthusiasts and professionals for its high sawing capacity and high precision. Whether in a workshop or in a construction site, it is an effective instrument for carrying out various tasks. Circular saws use a round blade that is lined with sharp metal teeth. The blade rotates to cut the wood smoothly. Circular saws also have a handle with a trigger switch, a nut to hold the blade in place, and a guard for safety purposes. One thing is certain: the circular saw is a real easy solution for almost all the works you intend to undertake and requiring sawing materials. Depending on your objectives, it adapts perfectly from small jobs to large construction sites.
SPECIFICATIONS
| SPEC. / MODEL | UNIT | CS-75N | CS-120N | CS-100S |
| Cutting Capacity | mm | Ø10~Ø75 15~60 |
Ø20~Ø120 20~85 |
Ø16~Ø100 (110) 20~80 (85) |
| in | Ø0.39~Ø2.95 0.6~2.36 |
Ø0.79~Ø4.72 0.79~3.35 |
Ø0.63~Ø3.93 (4.33) 0.78~3.15 (3.35) |
|
| Motor Output | HP | Blade-15/4P Hyd.-2 Bar feed servo-1.33 Servo feed rate-1.33 |
Blade-20/4P Hyd.-3 Bar feed servo-2.41 Servo feed rate-1.74 |
Blade-15/4P Hyd-2 Bar Feed Servo-1.13 Servo feed rate-1.73 |
| Blade Size | mm | Ø280 (285 Opt.) x Ø32 x T2.0 | Ø380 x Ø40 x T2.5 | Ø360 (380) x Ø40 x T2.5 |
| in | Ø11.0 (11.2 Opt.) x Ø1.26 x T0.079 | Ø14.9 x Ø1.57 x T0.098 | Ø14.1 (14.9) x Ø1.57 x T0.098 | |
| Packing Size | cm | 229 x 224 x 213 | 255 x 305 x 215 | 255 x 227 x 226 |
| Gross Weight | kg | 2950 | 3940 | 2650 / 2850 (with pallet) |
| Blade Speed | rpm | 56-225 | 50-150 | 70-130 |
| Blade Feed Cut | . | AC Servo motor and ball screw | ||
| Bar Feed | . | AC Servo motor and ball screw | ||
| Auto Feed Length | mm | 6~600 Single feed /600~9999 Multiple feeds | ||
| in | 0.23~23.62 Single feed /23.62~393.6 Multiple feeds | |||
| Auto Chip Conveyor | . | Chain belt chip conveyor (Opt.) | ||
| Cooling System | . | Air Compressed oil mist | ||
NOTE: We reserve the right to modify and improve the specification without notice, the specification shown above is for reference only.
FEATURES

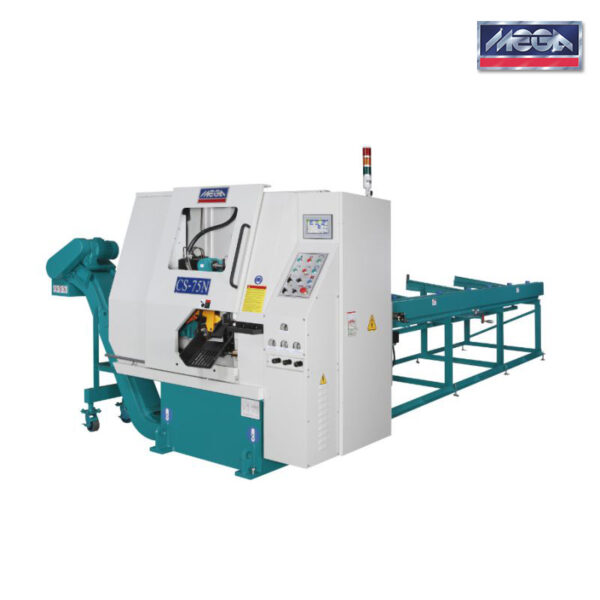

NC HIGH-SPEED HEAVY-DUTY AUTOMATIC CARBIDE CIRCULAR SAW
MAIN FEATURES:
MECHATRONICS CONTROL
High-speed precision cutting with an almost ground finish surface and excellent repeatability have been made possible by numeric control, servo motor feeding cut-off and bar feed, and vastly improved carbide saw blade.
CUTTING FASTER
CS-S Series
Suitable for cutting most steels & alloys ranging from structural to stainless steels (SS, SC, SUS). Cutting speed is 5 times faster than a machine with an HSS blade.
CS-F Series
Designed especially for cutting nonferrous metal, such as aluminum alloy, copper, plastic steel. 10times faster than cutting by machine with conventional HSS blade.
ENHANCE BLADE SERVICE LIFE
Rigid structure and anti-vibration design ensure excellent and accurate repeatability with a finishing cut surface for high-speed cutting and longer saw blade life.
LESS MATERIAL CONSUMING
Vastly improved carbide saw blade is thinner, achieving less material consuming and resulting in less blade wear and less power consumption.
