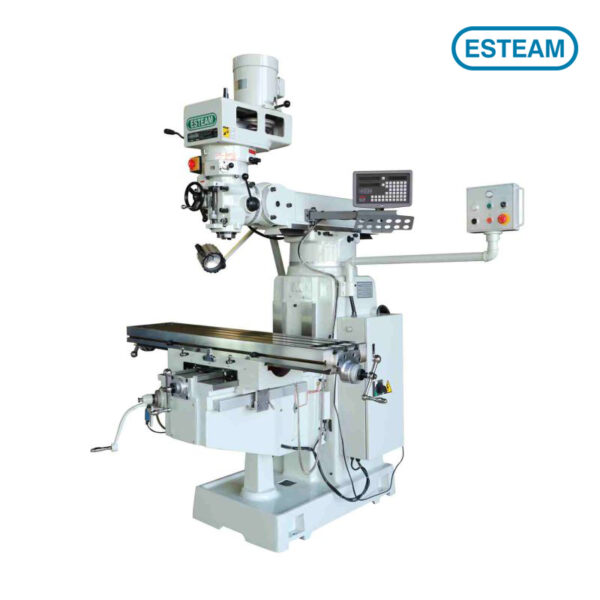

6ES Esteam Milling Machine

Product Specification

  • Dovetail Design on X-axis
  • Square guide ways on Y & Z axis for more rigidity
  • 5 HP motor with ISO 40 spindle
  • Hardened & ground on spindle gear, back gear, and gear cluth

Product Description

Esteam brand vertical ram turret milling machine

Product description

Product Specification

TECHNICAL SPECIFICATIONS OF 6ES
Table size 305 x 1370 mm
T-slot of table Qtyxsize 3 x 16 mm
Longitudinal travel X axis manual 720 mm
Cross travel 415 mm
Vertical travel of knee 385 mm
Ram travel 560 mm
Quill travel 127 mm
Spindle to table nose 520 mm
Over swivel on turret 360°
Head swivel (R& L) ±45°
Spindle to column 159 ~ 719mm
Spindle motor 5 HP
Spindle taper NST # 40
Spindle speed(RPM) 66 ~ 4530 (50Hz) 16 steps
Machine Dimension 1600 x 1850 x 2400 mm
Machine weight 1900kgs
